．符合ANSI/TIA-568.2-D、ISO/IEC 11801 Class D、 EN50173 規範設計製造
．通過多種國際安規認證

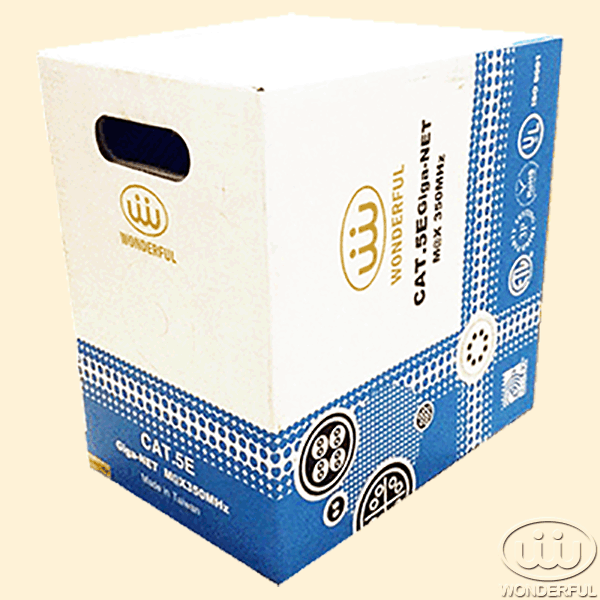

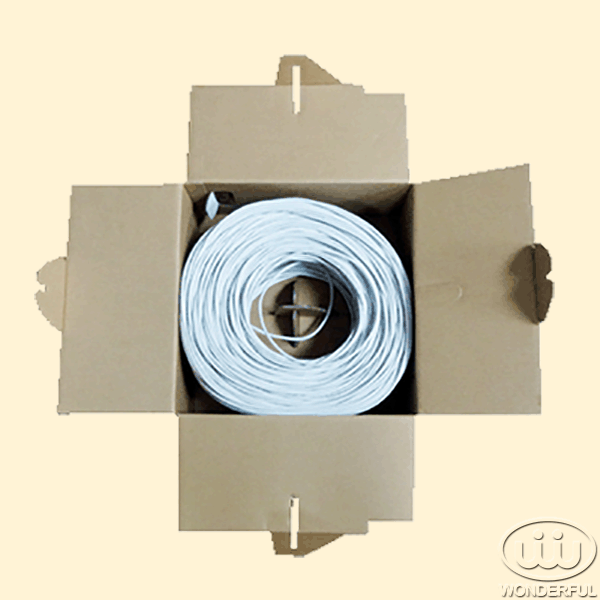

．採用新型易拉箱(REELEX II)上顏色區分,可同時拉線易於分辨不打結
．頻寬特性可達350MHz，延遲誤差：<40 ns/100m
．通過歐洲化學總署(ECHA)高關注物質篩檢規範
．ROHS(6大重金屬)及SVHC(224項高關注有害物質)檢驗合格
．Certificate
．Standards
．ANSI/TIA-568.2-D
．ISO/IEC 11801 2nd Class D
．NEMA WC 63.1
．PrEN 50288-3-1
．IEC 61156-5
．Applications
．10 / 100 / 1G Base-t IEEE 802.3 i / u / ab.
．CDDI / FDDI / ATM / Token Ring.
．IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
．Limit Power -LP UL POE Safety standard.
．HDBaseT 2.0 standard.
．EtherCAT Industrial standard.
．Features
．Solid ,Stranded
．UTP , FTP , SFTP
．Flame Retardant
．CMP (NFPA 262)
．CMR (UL 1666)
．CM (UL 1685)
．CMX
．LSZH (IEC 60332-1)
．FRLSZH (IEC 60332-3-24C)
|
